Vaults for file storage

Vaults define physical file storage locations to store jobs and mail files. An appropriate vault daemon has to be set up and maintained to actually use a vault.

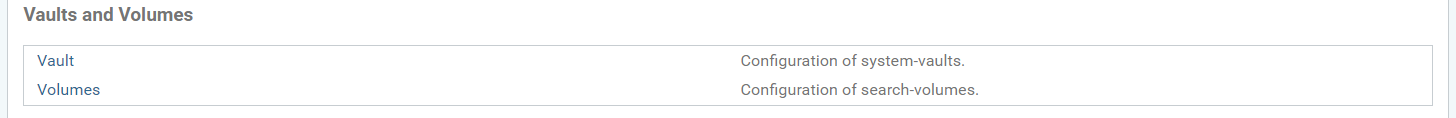

Figure: Vaults and Volumes configuration area

The icons “Back to previous page”, “Update overview” and “Create new vault configuration” are at the top of the screen.

Existing vaults display in a table.

The columns are divided into

• Name
• Vault description (optional)
• Vault configuration display (Circle icon)
• Changes to vault configuration (Edit icon)

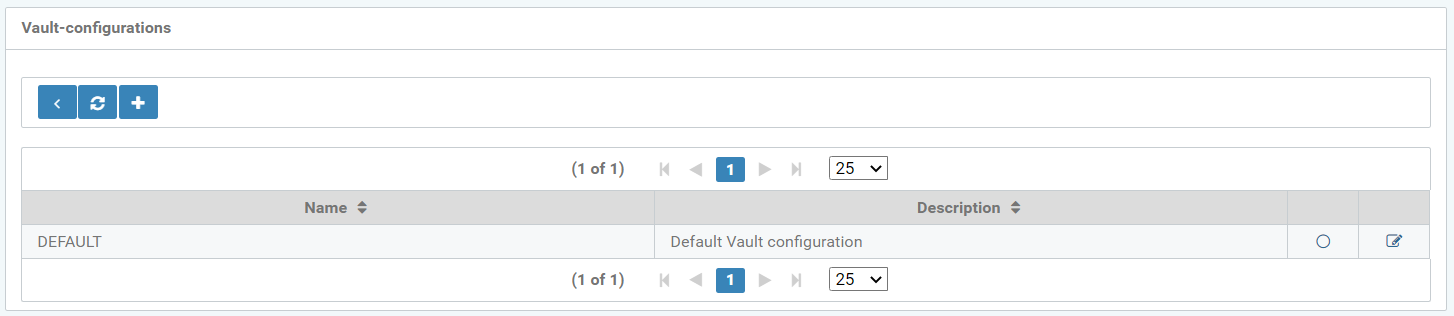

Figure: Overview of vault configurations

Create new vault

The "Configuration" tab is for configuring a new vault. The following parameters are editable:

• Name
• Path
• Host name
• Description

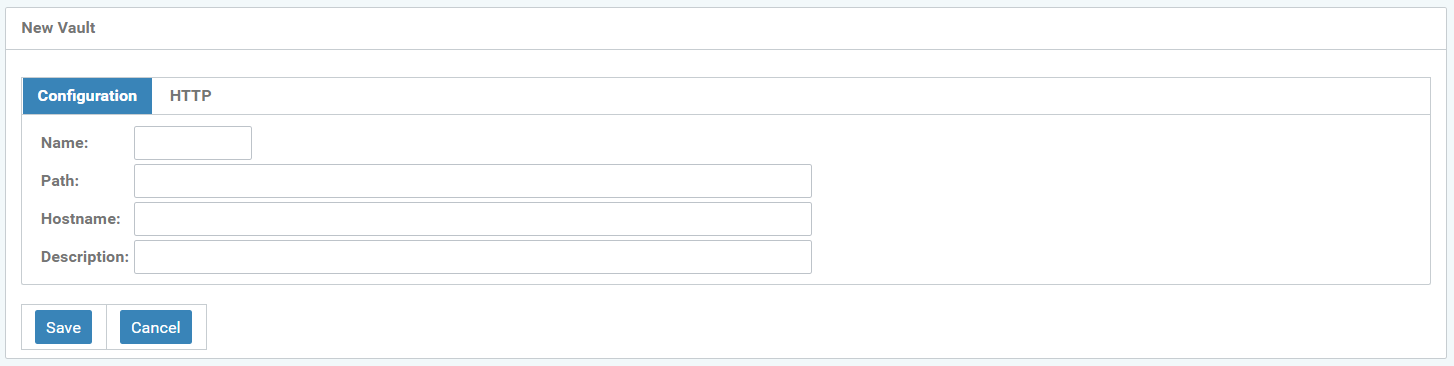

Figure: New vault - configuration

HTTP ports are processed in the HTTP tab and are divided into:

• HTTP port
• HTTPS port

Note, that only one of the two ports may have a value > 0. It will be the one used and it determines whether communication will be via HTTP or HTTPS.

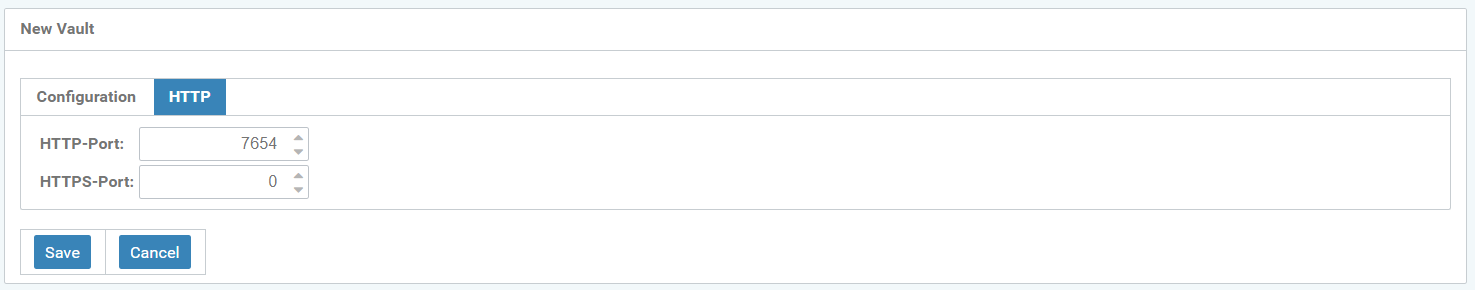

Figure: Specify HTTP ports of the new vault

Change Vault

Ports and configuration of existing vaults can be modified.

You can no longer change the name of an existing vault.

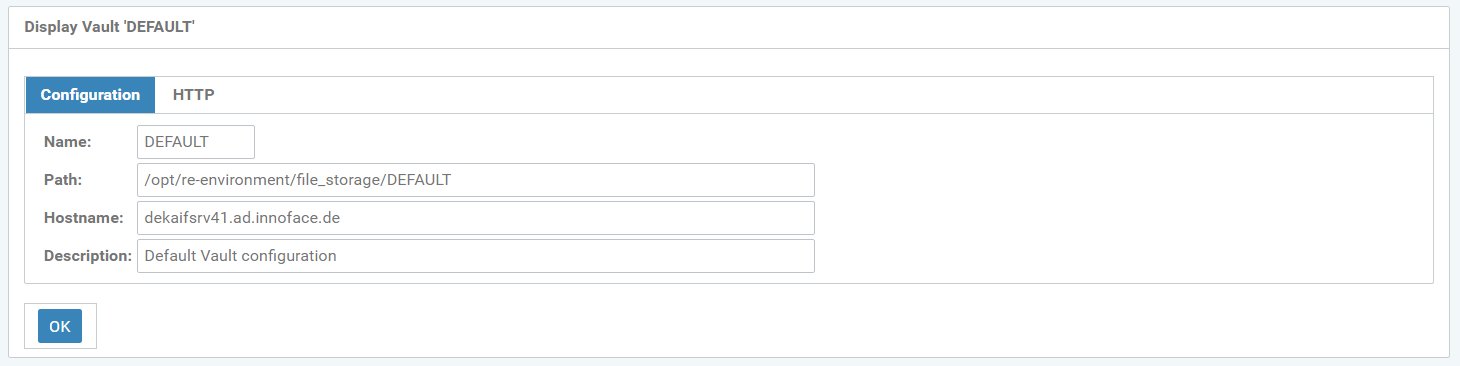

Figure: Change the vault configuration

Furthermore, the HTTP port for the already created vault can be changed - see the following figure.

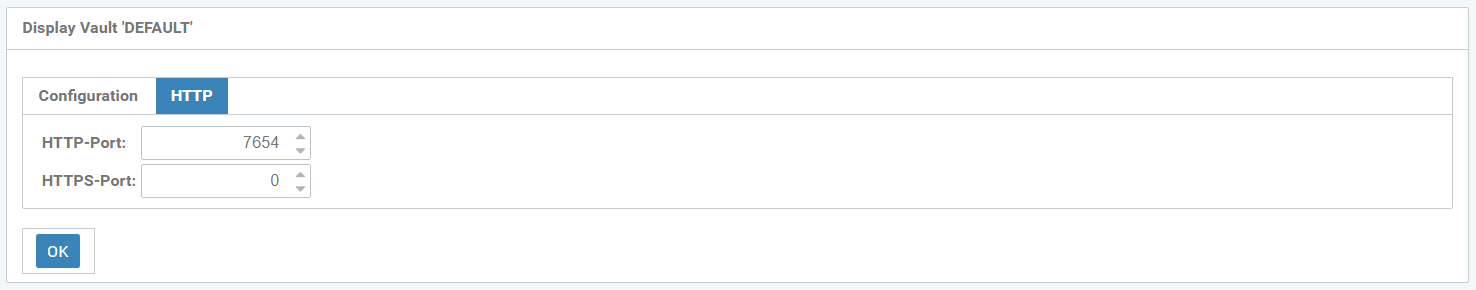

Figure: Change the HTTP port of the vault

Delete Vault

Unused vaults can be deleted via the trash can icon.

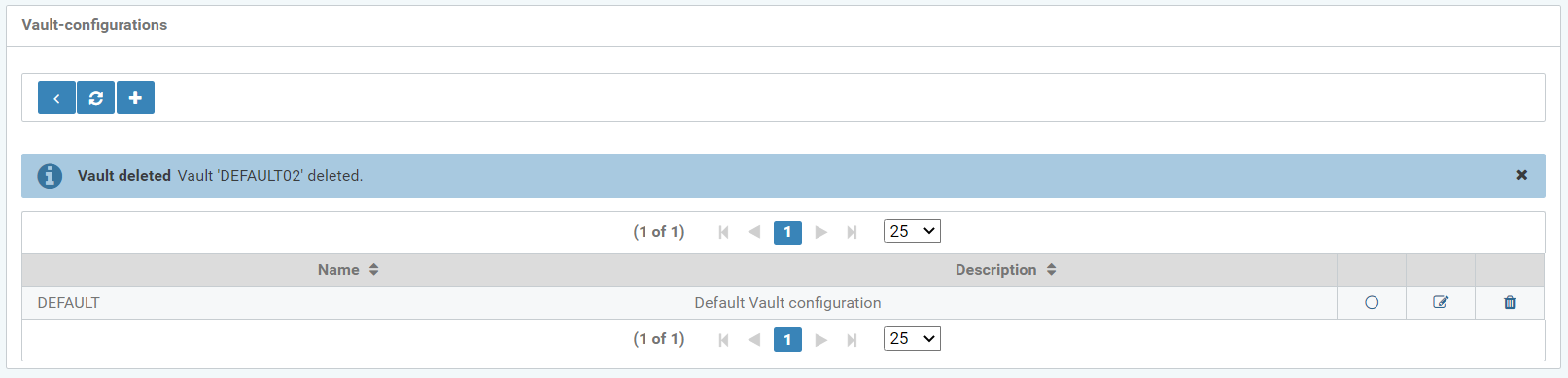

Figure: Vault configurations

Before the vault is finally deleted, a pop-up window appears as a confirmation prompt asking if the Vault should really be deleted.

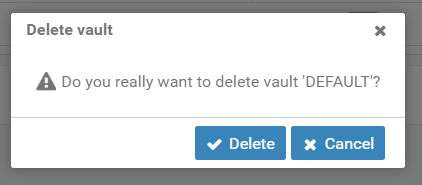

Figure: "Delete Vault" pop-up window
